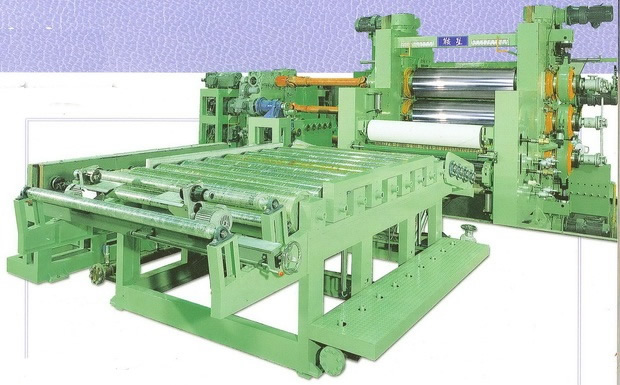

壓延機及後段設備
| 用途： |
PVC膠膜壓延成型、定厚、引取、冷卻定型及成品捲取。 |
| 特點： |
1. |
精密度高、產量大，適合生產各種高級膠布。 |
| |
2. |
以單馬達傳動或四輪獨立馬達傳動，可調整不同之速差。 |
| |
3. |
配備輥輪快速打開裝置，可避免停電時PVC分解損傷輪面。 |
| |
4. |
採強制潤滑及集中潤滑系統，確保各零件之壽命及潤滑良好。 |
| |
5. |
同步發信器檢出交叉量並傳至操作盤以液晶數字顯示，以利操作者調整厚薄。 |
| |
6. |
採歐洲進口輥輪及雙列滾柱斜孔軸承，精密度高。7.電控系統全面採用最先進的PLC通訊介面設計。 |
| |
7. |
電控系統全面採用最先進的PLC通訊介面設計。 |
| 規格： |
Ø24" × 72" L, Ø24" × 80" L, Ø26" × 90" L, Ø28" × 90" L, Ø30" × 106" L. |
Calender & Train Equipment
| Application: |
For calendering the PVC film or sheet with thickness setting, winding unit. |
| Features: |
1. |
High precision, High output, suitable for all kinds of PVC leather. |
| |
2. |
Driven by one
main motor or by four individual motor in different speeds. |
| |
3. |
Rapid roller opening device, to
avoid the decomposition of PVC to damage on the roll in case of blackout. |
| |
4. |
Forced lubrication and
centralized lubrication system, for optimal parts and operation. |
| |
5. |
Synchronized signal emitter for
detection of crossing with transmission to the operation panel in digital display, easy for operator to adjust the thickness of product. |
| |
6. |
European-made rollers and dual running axis bearing of high pression. |
| |
7. |
To adopt the latest design of PLC for electric control system. |
| Capacity: |
Ø24" × 72" L,Ø24" × 80" L,Ø26" × 90" L,Ø28" × 90" L,Ø30" × 106" L. |
